Overview
Quick Details
- Place of Origin:
-
Shandong, China (Mainland)
- Brand Name:
-
qingdao cable
- Model Number:
-
THW
- Type:
-
Insulated
- Application:
-
Overhead
- Conductor Material:
-
Copper
- Conductor Type:
-
Stranded
- Insulation Material:
-
PVC
- type:
-
THW
- voltage:
-
600V
- temperature:
-
75°C wet or 90°C dry
- specification:
-
14AWG-750MCM
Supply Ability
- Supply Ability:
- 1000000 Meter/Meters per Month
Packaging & Delivery
- Packaging Details
- 300meters/coil
- Port
- qingdao

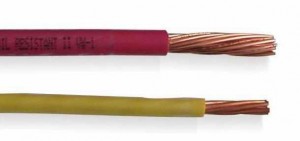

High quality THW wire
Nominal cross sectional area (AWG)
|
Conductor structure
Number/Diameter of single wire
|
Insulation thickness
|
Maximum outer diameter
|
14
|
7/0.62
|
0.76
|
3.56
|
12
|
7/0.77
|
0.76
|
3.96
|
10
|
7/0.98
|
0.76
|
4.56
|
8
|
7/1.23
|
1.14
|
6.20
|
6
|
7/1.56
|
1.14
|
7.10
|
4
|
7/1.96
|
1.14
|
8.30
|
2
|
7/2.47
|
1.14
|
9.60
|
1/0
|
19/1.89
|
1.40
|
12.38
|
2/0
|
19/2.12
|
1.40
|
13.18
|
4/0
|
19/2.68
|
1.40
|
16.18
|
350Kcmil
|
37/2.47
|
1.65
|
20.72
|
500Kcmil
|
37/2.95
|
1.65
|
23.72
|
750Kcmil
|
61/2.82
|
2.03
|
29.00
|
