New Arrival China Abc Cables 2*16 Twisted Service Drop Cables - Electrical Power and Control tray cable – Cable Detail:

Overview

Quick Details

Place of Origin:: Shandong, China (Mainland)

Insulation Material:: PVC

Type:: High Voltage

Application:: Industrial

Conductor Material:: Copper

Jacket:: PVC

type:: THHN/THWN

voltage:: 600V

temperature:: 90°C

SIZE:: 14AWG~4/0AWG

Keywords:: tray cable

Name:: Electrical Power and Control tray cable

Supply Ability

Supply Ability:: 1000000 Meter/Meters per Month

Packaging & Delivery

Packaging Details: per request

Port: qingdao

Standard
UL 83,UL66, UL 1277, UL 1581

Specification and Construction
Type TC Control Cable is available in sizes 18 AWG through 10 AWG, with multiconductor constructions of two through 37 conductors.

The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG. Individual conductors are bare annealed copper

covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket

consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.
1, Qingdao Cable offers in three and four conductor cables in sizes AWG 14, 12, 10, with a green insulated ground wire using ICEA color

code Method 1, Table 2.
2, Three and four conductor cables in sizes AWG 14, 12, 10, including a green insulated ground wire are UL listed for open wiring per

NEC 336.10 .

AWG 10 (7 strands)Type TC-THHN or THWN Conductors
Number of Conductors	Jacket Thickness (inches)	Avg. Overall Diameter		Approximate Weight
Number of Conductors	Jacket Thickness (inches)	inches	mm	lbs./1000′	kg./km.
2	0.045	0.261*0.427	6.62*10.85	102	152
3	0.045	0.453	11.50	157	234
4	0.06	0.528	13.40	216	323
5	0.06	0.575	14.61	261	390
6	0.06	0.627	15.92	304.18	454
7	0.06	0.625	15.88	347	518
8	0.06	0.677	17.19	387.93	579
9	0.06	0.742	18.84	440	657
10	0.06	0.794	20.16	481	718
12	0.08	0.859	21.83	603	900
15	0.08	0.952	24.19	728	1087
19	0.08	1.000	25.41	903	1348
20	0.08	1.028	26.11	936	1397
25	0.08	1.195	30.35	1159	1730
30	0.08	1.239	31.46	1361	2031
37	0.08	1.336	33.94	1650	2463
3+1	0.06	0.498	12.65	204	304

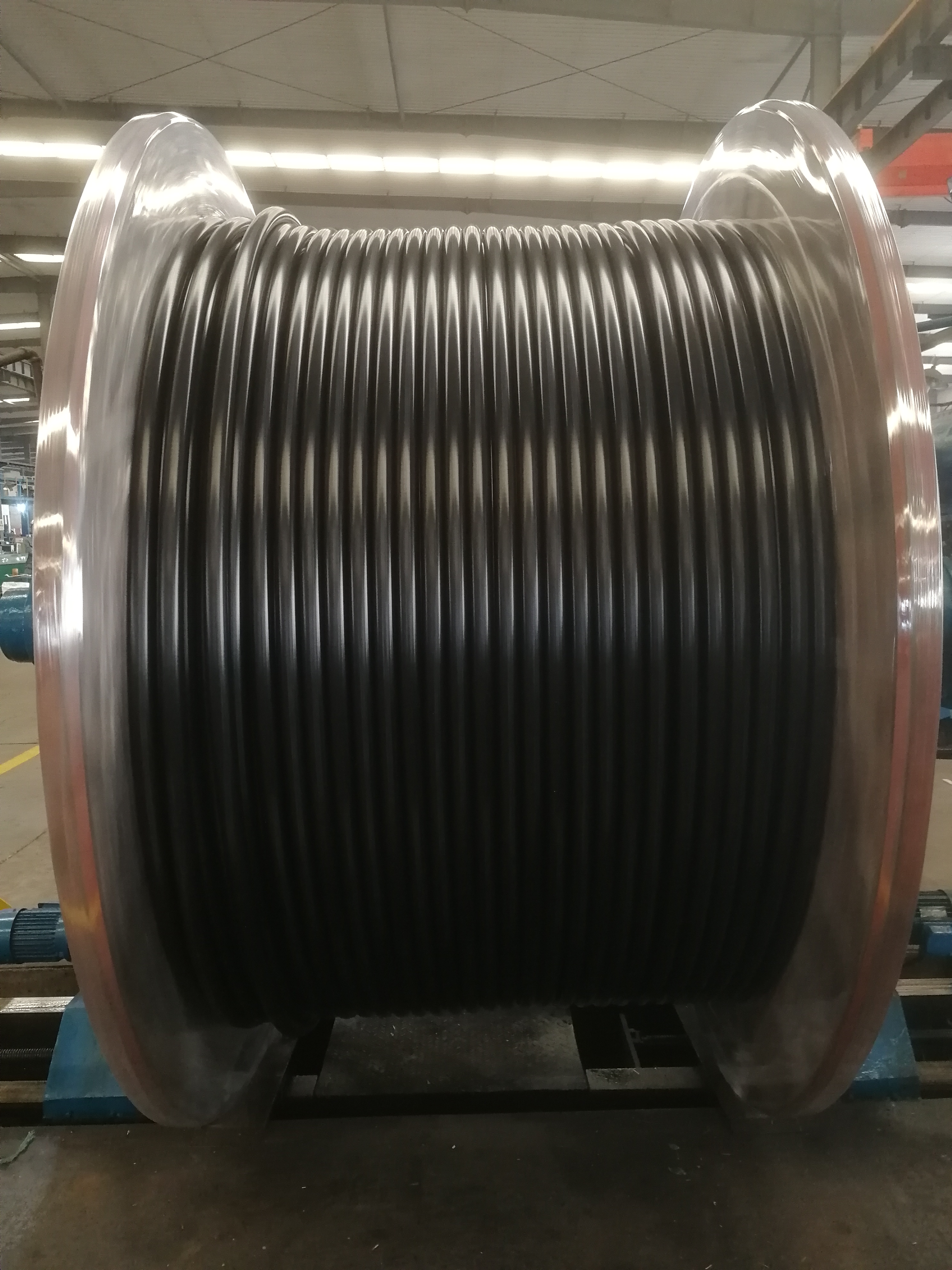

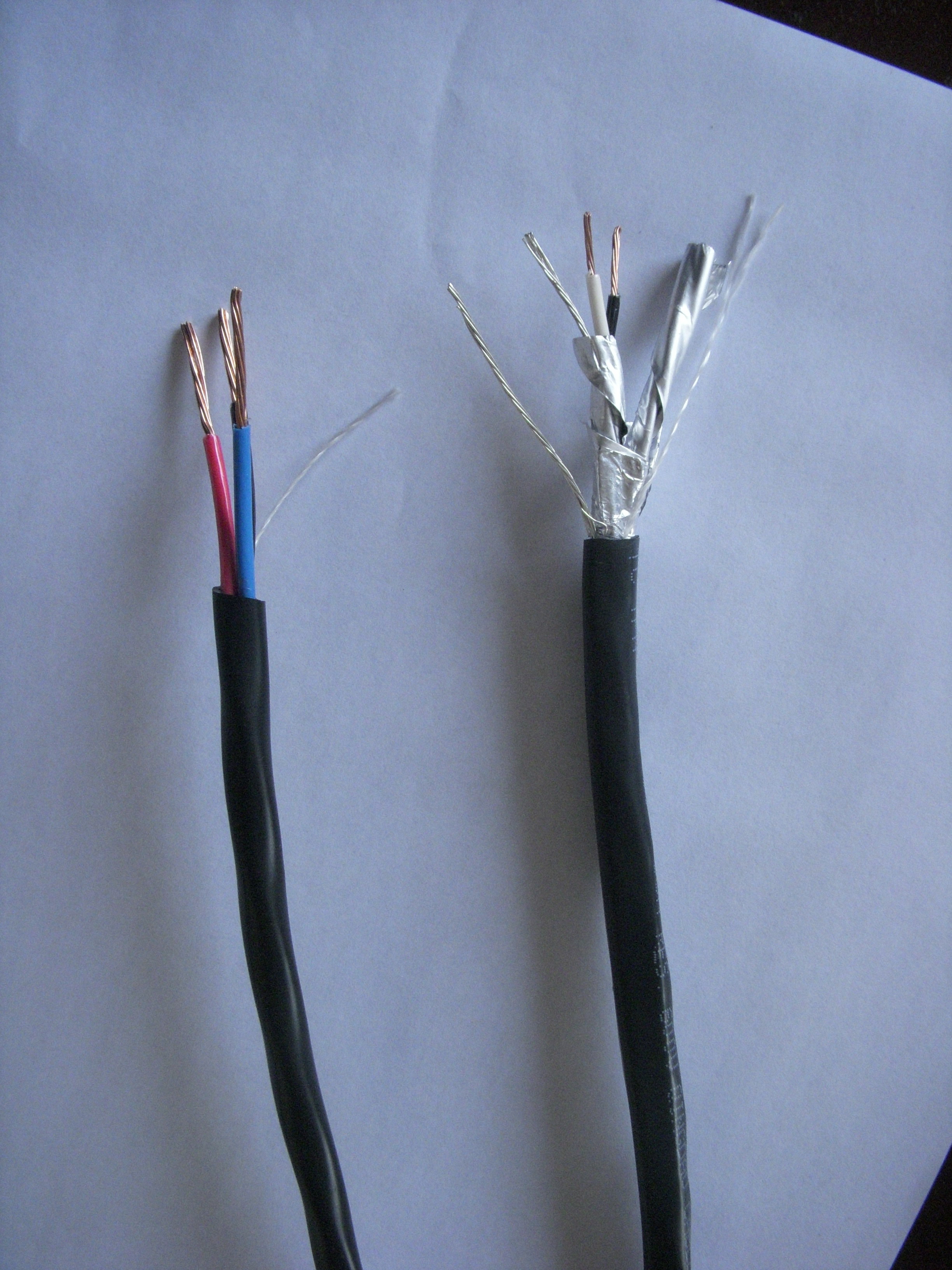

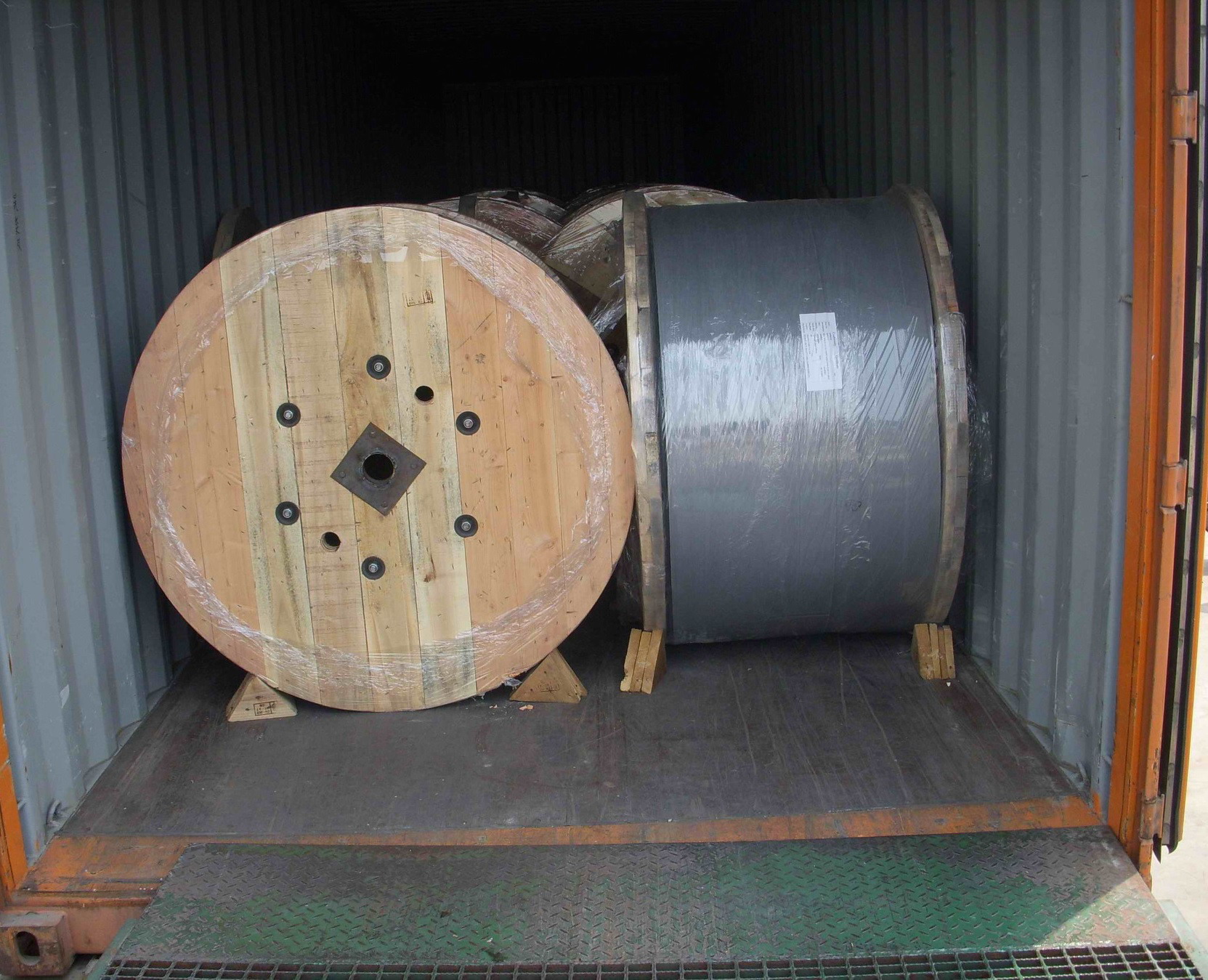

Product detail pictures:
