OEM China Submersible 2hp Motor Pump - MC CABLE UL CERTIFIED METAL CLAD POWER CABLE – Cable Detail:

(1)14AWG through 1000kcmil Copper THHN/THWN-2 Insulated Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor. (2)6AWG through 1000kcmil Aluminum cross-linked polyethylene XLPE insulation Insulated XHHW-2 Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor. PVC jacket.

Overview

Quick Details

Place of Origin:: Shandong, China (Mainland)

Brand Name:: qinglan

Model Number:: MC

Insulation Material:: PVC

Type:: Low Voltage

Application:: Industrial

Conductor Material:: Copper

Jacket:: nylon

Supply Ability

Supply Ability:: 10000000 Foot/Feet per Month

Packaging & Delivery

Packaging Details: per request

Port: qingdao

Product Description

Type MC

14 AWG through 1000kcmil Copper THHN/THWN-2 Insulated Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor.

Scope

This specification covers lightweight aluminum interlock armor type MC cable with soft annealed copper solid or stranded conductor,THHN/THWN insulated singles, conforming to Standard 1569 of Underwriters Laboratories, Inc. UL file No.E313205 .

Application

Type MC cables are suitable for use as follows: branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings. Power, lighting, control, and signal circuits. Type THHN/THWN conductors are rated 90℃ dry / 75℃ wet. They are permitted for 600V application.

Conductors: Soft annealed copper .

Sizes:14AWG-1000kcmil. .

Insulation: Flame retardant PVC. Thickness: per UL83.

Color coding:

Number of conductors

Color

Grounding conductor

black, white

black, white, red

black, white, red, blue

green

Conductor jacket: Nylon. Thickness: per UL83.

Cabling: Three or more conductors are assembled without fillers and wraped by a polyester binder tape. A marker tape is inserted under the binder tape.

Armor: Aluminum interlock armor is applied over the assembly.

Jacket: A flame retardant PVC jacket is optional.

Information on the marker tape or the jacket: AWG or kcmil size,conductor type letters,rated voltage,the name of the manufacturer,UL file number,characteristic,manufacture date,FEET.

Type MC Cable Data

Size AWG	No. of Strands	PVC Insulation Average Thickness (mils)	Nylon Jacket Minimum Thickness (mils)	Approx. O.D. (mils)	Max.DC Resistance (20℃, Ω/km) (Bare Copper)
14/2+14/1	1	15	4	469	8.45
14/3+14/1	1	15	4	492	8.45
14/4+14/1	1	15	4	516	8.45
12/2+12/1	1	15	4	504	5.31
12/3+12/1	1	15	4	535	5.31
12/4+12/1	1	15	4	567	5.31
10/2+10/1	1	20	4	571	3.343
10/3+10/1	1	20	4	610	3.343
10/4+10/1	1	20	4	654	3.343

Packaging Information: Coils or Reel

Certifications

MC cable ?? listed 1569 metal clad cable Type MC cable 600volts power cable copper conductor ALuminum Armor/thhn/thwn-2

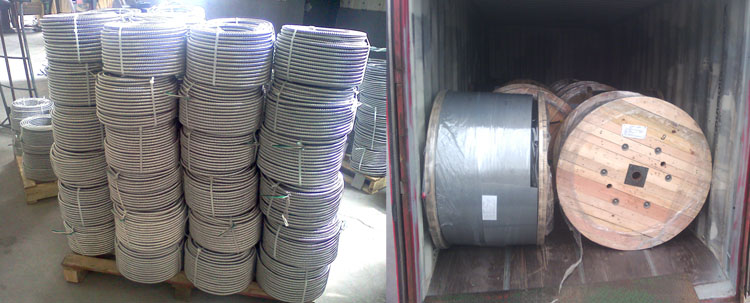

Packaging

Our Factory

FAQ

(1) When can I get a response?

We will reply to your inquiry as soon as possible, usually within 6 hours. You can call us directly if it is urgent.

(2). How can I get a sample?

you can require for samples after price confirmation. Samples in stock are free of charge, but the freight charge should be paid.

(3). What about the lead time for mass production?

It depends on the order quantity, the distance of transportation and so on. We suggest that you start inquiry two months before the date you would like to get the products at your country.

Please contact us for details about lead time and other issues.

We look forward to sincere cooperation with you!
