TYPE TC -Instrument Cable
PVC with Nylon Insulation, Multiple Pairs, Precabled Pair Shielded and Overall Shielded, PVC Jacket,600V
Application: Listed for use in cable trays, Rated 600V,90℃.
Ratings:
UL1277-Type TC
UL66-Type TFN
Sunlight resistant
FT4

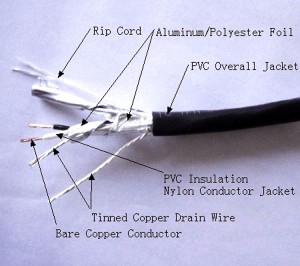

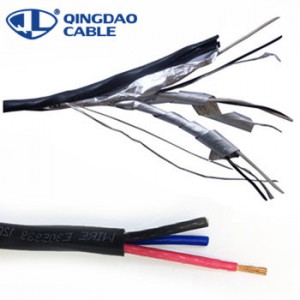

Construction:18-16AWG stranded bare copper .PVC with nylon insulation , color coded(pair identified with numeric print), precabled pair and overall aluminum/polyester foil tape plus tinned copper drain,black PVC jacket(Flame-retardant ,sunlight resistant,gas/vapor- tight), A rip cord is inserted under the jacket for ease of stripping,surface printed.
Information on the cable: AWG size, type letters, temperature, rated voltage, the name of the manufacturer, UL file number, characteristic, FEET
Cable Data
|
No. of Pairs |
Size/ Strands |
Insulation Thickness (mm) (PVC/Nylon) |
Jacket Thickness (mm) |
Approx. O.D. (mm) |
Approx. Weight (kg/km) |
|
2 |
18 7/Str |
0.38/0.10 |
1.14 |
7.10 |
111.51 |
|
3 |
18 7/Str |
0.38/0.10 |
1.14 |
8.37 |
151.21 |
|
4 |
18 7/Str |
0.38/0.10 |
1.14 |
9.00 |
187.40 |
|
6 |
18 7/Str |
0.38/0.10 |
1.52 |
11.50 |
276.26 |
|
2 |
16 7/Str |
0.38/0.10 |
1.14 |
7.83 |
137.00 |
|
3 |
16 7/Str |
0.38/0.10 |
1.14 |
9.27 |
188.35 |
|
4 |
16 7/Str |
0.38/0.10 |
1.14 |
10.00 |
235.73 |
|
6 |
16 7/Str |
0.38/0.10 |
1.52 |
12.74 |
349.66 |
————————————————————————————————————————————————————————————————————————————

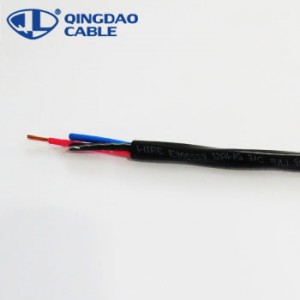

TYPE TC - Power and Control Cable
PVC/Nylon Insulation with Overall PVC Jacket 600V, 90℃ Dry, 75℃ Wet
Scope:

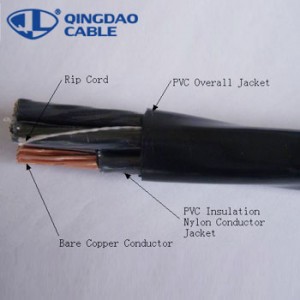

This specification covers multiconductor cables having TFN or THHN/THWN (PVC/Nylon) conductors with an overall flame-retardant ,sunlight resistant,gas/vapor-tight polyvinyl chloride (PVC) jacket, conforming to Standard 1277 of Underwriters Laboratories, Inc. They meet the requirements of the FT4 flame test. Rated 600 volts, 90°C dry ,75°C wet. UL file No. E305939.

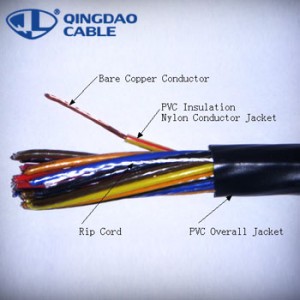

Conductors: Bare, soft annealed copper.
Sizes 18 and 16 AWG(TFN): Bunch stranded. Size 18(7/0.39mm)and 16(7/0.49mm)per UL66.
Sizes 14AWG-250kcmil(THHN/THWN): Concentric stranded, Class B per ASTM B8 and UL83.
Insulation: Flame retardant PVC.Thickness:18 and 16AWG per UL66,14AWG-250kcmil per UL83.
Color coding:
(1) TC control cable(10AWG and below):Identified by color and code,see Table 1.
(2) TC power cable(8AWG and up): Identified by color and code, see Table 2.
Conductor Jacket: Nylon.Thickness: 18 and 16AWG per UL66,14AWG-250kcmil per UL83.
Cabling: Three or more conductors are assembled without fillers.A rip cord is inserted under the jacket for ease of stripping.
Overall Jacket : Flame-retardant ,sunlight resistant ,gas/vapor-tight PVC jacket .Thickness: per UL1277 .
Information on the cable: AWG or kcmil size, type letters, temperature, rated voltage, the name of the manufacturer, UL file number, characteristic, FEET.
Table1
table2
table3
table4
table5
